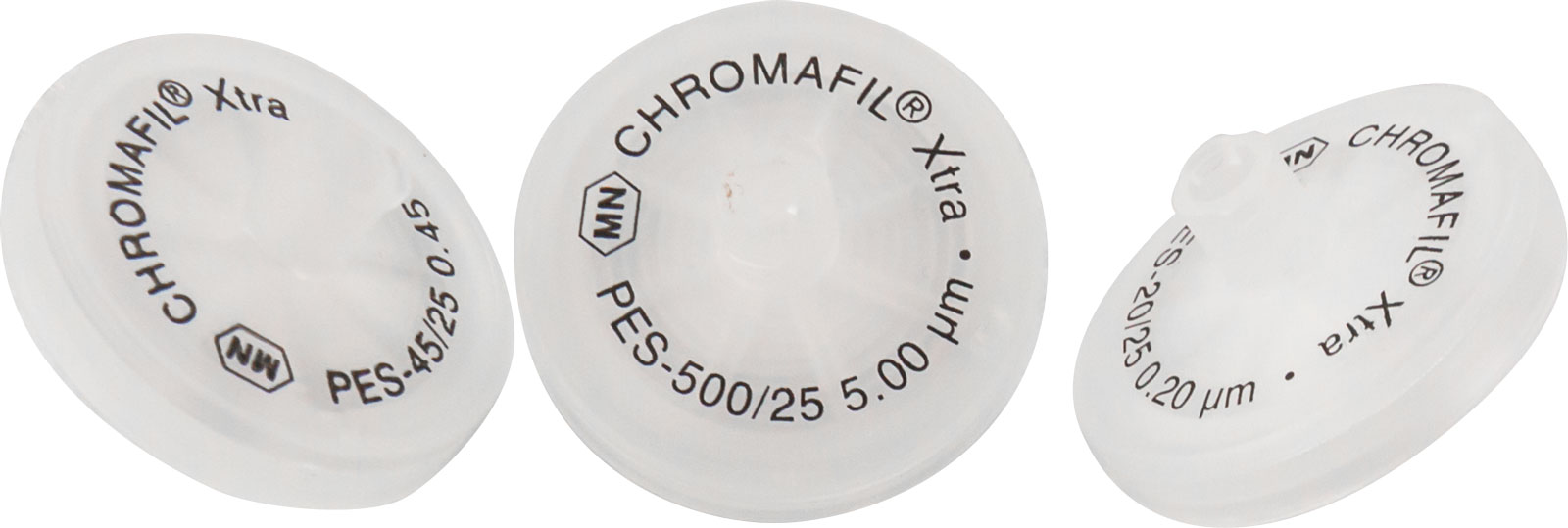

CHROMAFIL® Syringe Filters – Polyethersulfone (PES)

  • Hydrophilic membrane
  • For aqueous and slightly organic liquids with higher flow rates
  • Very low adsorption for pharmaceuticals and proteins
  • Good stability against acids and bases
  • Sterile PES (each filter individually sealed)
  • Binding capacity for proteins for both types 29 µg/filter
Catalog No.DescriptionPrice (USD)
729240Chromafil Xtra Syringe Filters, PES-20/25, 0.20um, 25mm diam., colorless/labelled, 100/pk Buy now $122.00
729240.400Chromafil Xtra Syringe Filters, PES-20/25, 0.20um, 25mm diam., colorless/labelled, 400/pk Buy now $488.00
729241Chromafil Xtra Syringe Filters, PES-45/25, 0.45um, 25mm diam., colorless/labelled, 100/pk Buy now $122.00
729241.400Chromafil Xtra Syringe Filters, PES-45/25, 0.45um, 25mm diam., colorless/labelled, 400/pk Buy now $488.00
729242Chromafil Xtra Syringe Filters, PES-500/25, 5.0um, 25mm diam., colorless/labelled, 100/pk Buy now $122.00
729242.400Chromafil Xtra Syringe Filters, PES-500/25, 5.0um, 25mm diam., colorless/labelled, 400/pk Buy now $488.00

  Type Pore Size (µm) Membrane Diameter (mm) Color (Top) Color (Bottom) Standard Pack (Filters/Pack) REF BIG-BOX (Filters/Pack)
Xtra PES-20/25 0.20 25 labeled 100 729240 400
Xtra PES-45/25 0.45 25 labeled 100 729241 400
Xtra PES-500/25 5.0 25 labeled 100 729242 400
Sterilizer PES 0.20 25 blue rim 50 729401

CHROMAFIL Disposable Filters

This table lists the chemical compatibility of our CHROMAFIL materials. The chemical compatibility depends on several parameters such as time, pressure and concentration. In most cases, CHROMAFIL filters will have only short contact with a solvent. In these cases they may be used despite limited compatibility. For example, a PTFE filter with PP housing does not liberate any UV-detectable substances during filtration of 5 ml THF, although PP shows only limited resistance towards THF.

INTERACTIVE COMPATIBILITY CALCULATOR

+ Resistant | – Not Resistant | O Limited Resistance

  • MV-Cellulose Mixed Esters
  • CA-Cellulose Acetate
  • RC-Regenerated Cellulose
  • PA-Polyamide
  • PTFE-Polytetrafluoroethylene (Teflon)
  • PVDF-Polyvinylidene difluoride
  • PES-Polyethersulfone
  • PET-Polyester
  • GF-Glass Fiber
  • PP-Polypropylene (Housing Material)

Solvent Material
MV CA RC PA PTFE PVDF PES PET GF PP
Acetaldehyde - - + 0 + + + + 0
Acetic acid, 100% - - - - + + + + + +
Acetone - - + + + + + + + +
Acetonitirle - - + + + + + + + +
Ammonia, 25% - - 0 - + + + 0 + +
Benzene + + + + + 0 + + 0
n-Butanol + + + 0 + + + + + +
Cyclohexane + + + 0 + + + + + +
Dichloromethane + - + - + + - + + -
Diethyl ether 0 0 + + + + + + + 0
Dimethylformamide - - 0 + + - - + + +
1, 4-Dioxane - - + + + 0 - + + 0
Ethanol - + + + + + + + + +
Ethyl acetate - - + + + + + + + 0
Ethylene glycol 0 0 + + + + + + + +
Formic acid, 100% + - 0 - + + + 0 + +
Hydrochloric acid, 30% - - - - + + + - + +
Methanol - - + + + + + + + +
Nitric acid, 65% - - - - 0 0 0 + -
Oxalic acid, 10% aqueous + - + - + + + + +
Petroleum ether + + + + + + + + + +
Phosphoric acid, 80% - - 0 - + 0 + + +
Potassium hydroxide, 1 mol/1 - - 0 + + 0 + 0 + +
2-Propanol + + + + + + + + + +
Sodium hydroxide, 1 mol/1 - - 0 + + 0 0 0 0 -
Tetrachloromethan + - + + + 0 + + 0
Tetrahydrofuran - - + 0 + + - + + -
Toluen + - + + + + + + + -
Trichloroethylene + + + 0 + + + + 0
Trichloromethan + - + - + + - + + -
Urea + + + + + + + + +
Water + + + + + + + + + +
DATA NOT GUARANTEED
