CHROMABOND® Vacuum Manifolds for Solid Phase Extraction (SPE)
CHROMABOND® vacuum manifolds let you prepare 12, 16, or 24 samples at the same time. You can choose from three configurations that hold up to 12, 16, or 24 CHROMABOND® columns or CHROMAFIX® cartridges. This way, you can set up the system that best fits your workflow.

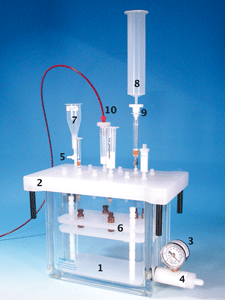

Each manifold has a strong glass cabinet with a polypropylene lid and a built-in vacuum gauge. You can easily monitor the pressure and adjust it with the control valve. As a result, you get consistent and reliable SPE results every time.
The lid also includes replaceable stopcocks, so you can control each column separately when needed. In addition, the variable rack with exchangeable partitions holds many vessel types, such as test tubes, flasks, vials, and more.
In the end, CHROMABOND® vacuum manifolds give you flexibility, accuracy, and durability. They support a wide range of solid phase extraction, chromatography, and sample preparation tasks, helping your lab work faster and with more confidence.
Chromabond® Vacuum Manifold Replacement Parts
CHROMABOND Vacuum Manifolds – Flexible Solid Phase Extraction (SPE) Systems
CHROMABOND® vacuum manifolds are designed for the simultaneous preparation of up to 12, 16, or 24 samples, making them ideal for efficient solid phase extraction (SPE) workflows. A full range of replacement parts and accessories are available for specialized applications and long-term use.
Key Features and Configurations
-
Durable Rectangular Glass Cabinet – Available in two sizes:
• Small: holds up to 12 CHROMABOND® columns or CHROMAFIX® cartridges
• Large: holds up to 16 CHROMABOND® LV columns or up to 24 CHROMABOND® columns or CHROMAFIX® cartridges (depending on lid option) -
Polypropylene Lid – Strong, lightweight, and chemical-resistant.
-
Vacuum Gauge – Provides accurate pressure readings for consistent SPE performance.
-
Control Valve – Enables precise adjustment of vacuum pressure during sample preparation.
-
Replaceable Valves/Stopcocks – Allow individual vacuum control for each SPE column when required.
-
Variable Rack with Exchangeable Partitions – Compatible with multiple vessel types including test tubes, measuring flasks, scintillation vials, autosampler vials, and plastic vials.
-
CHROMABOND® LV Columns – Equipped with 15 mL sample reservoirs for medium-sized samples.
-
Polypropylene Sample Reservoirs – Available in 30 mL and 70 mL options.
-
Adapters for Sample Reservoirs – Flexible connection for different lab setups.
-
CHROMABOND® Tubing Adapters – Expand versatility and ease of use in chromatography applications.
Benefits for Chromatography and Sample Prep
-
Efficient processing of multiple samples in parallel
-
Flexible configurations to match small-, medium-, and large-scale SPE workflows
-
Robust construction with long-lasting, replaceable components
-
Wide compatibility with CHROMABOND® and CHROMAFIX® cartridges
CHROMABOND® vacuum manifolds deliver reliable, customizable solid phase extraction solutions for chromatography laboratories seeking precision, speed, and flexibility.
Contamination
Special Connectors for Cross-Contamination Protection in SPE
For special solid phase extraction (SPE) applications that demand maximum protection against cross-contamination, Sorbtech offers chrome-plated brass valves and stainless steel or PTFE connectors. These inert connectors are securely fitted through the vacuum manifold lid, ensuring that samples only come into contact with the connector material. This design allows the sample to flow directly into the collection receptacle, reducing contamination risks and improving reliability in chromatography and sample preparation workflows.
Manifolds
| Catalog No. | Description | Price (USD) |
|---|---|---|
| 730150N | Chromabond SPE vacuum manifold for up to 12 pos. Consists of glass cabinet w/lid (incl. 4x feet, Luer fittings, lid gasket), needles (PP), vacuum gauge, control valve, Luer valves (stopcocks), caps, var. rack, PP-tank (waste collector/container) |  Inquire |
| 730151N | Chromabond SPE vacuum manifold for up to 24 pos. Consists of glass cabinet w/lid (incl. 4x feet, Luer fittings, lid gasket), needles (PP), vacuum gauge, control valve, Luer valves (stopcocks), caps, var. rack, PP-tank (waste collector/container) | Inquire |
Replacement Parts
| Catalog No. | Description | Price (USD) |
|---|---|---|
| 730386 | Chromab. Tubing adaptor 15,45,70 ml |  Buy now $263.00 |
| 730387 | Chromab. Tubing adaptor 15,45,70 ml col. | Buy now $263.00 |
| 730243 | Chromab. Tubing adaptor f 1,3,6 ml | Buy now $170.00 |
| 730189.12 | Chromab. valves, brass, tarnished | Buy now $464.00 |
| 730183.12 | Chromabond Luer fitting for LID female, 12 | Buy now $114.00 |
| 730184.12 | Chromabond Luer fitting for LID male, 12pk | Buy now $114.00 |
| 730194 | Chromabond Male Luer Cap, non-vented, PE, blue, 12/pk | Buy now $77.40 |
| 730106 | Chromabond Stainless Steel Connector | Buy now $252.00 |
| 730152 | Chromabond stainless steel needle, 12 pcs | Buy now $88.50 |
CHROMABOND® Drying Attachments and Collection Racks For Evaporation of Eluates

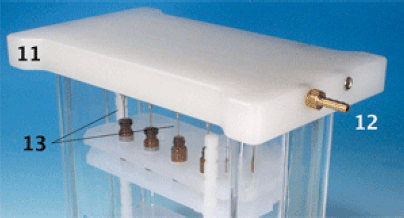

If the eluate has to be evaporated, this can be performed with the so-called drying attachment (11). This special lid has a gas connector on one side (12), from which the gas is fed simultaneously to the 12 or 24 stations (13). Thus 12 or 24 eluates can be evaporated simultaneously by just changing the lid and applying a stream of inert gas, e.g., nitrogen.
