GC Column, Macherey-Nagel OPTIMA® 1

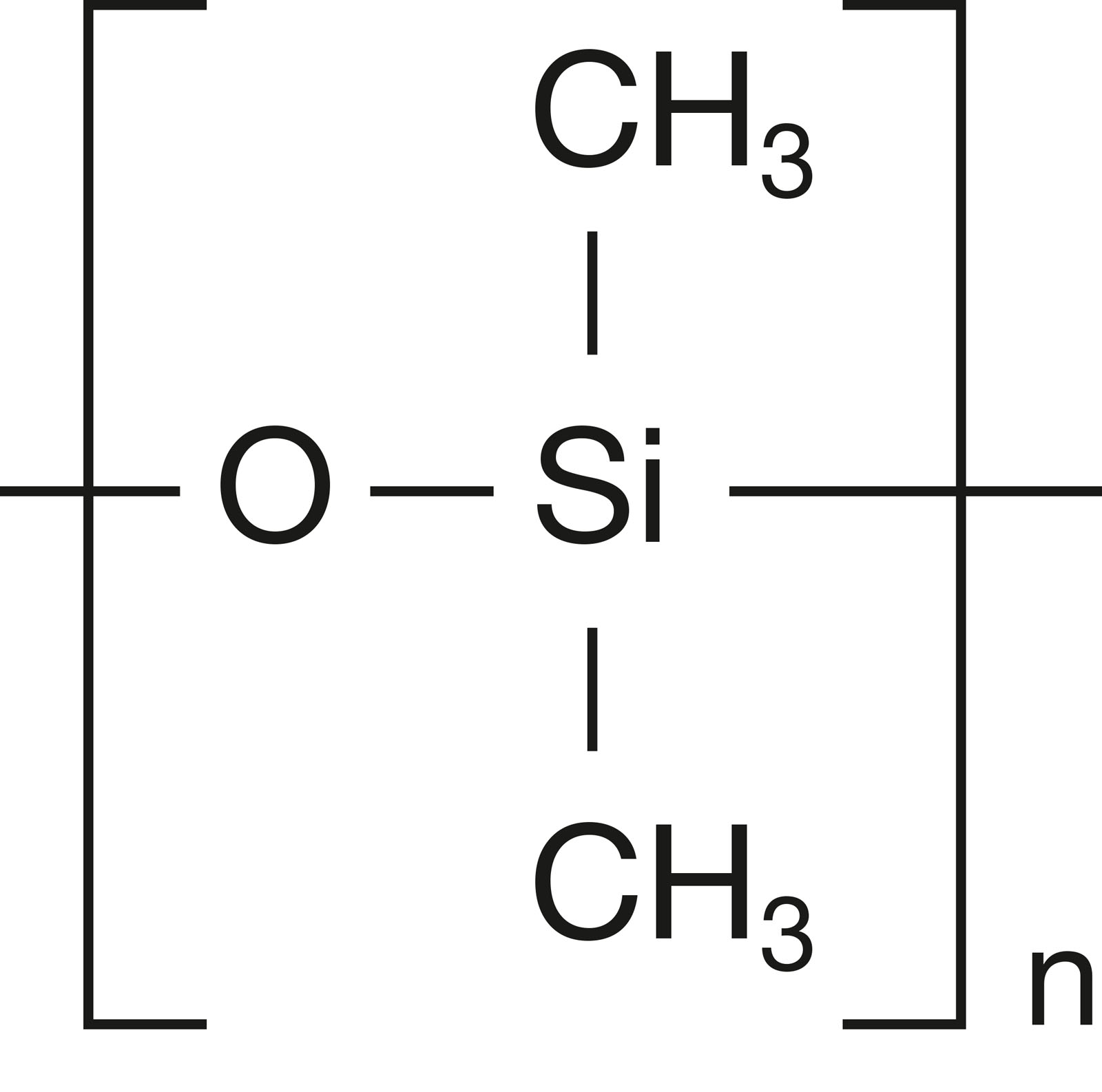

STATIONARY PHASE: 100% Dimethylpolysiloxane

Optima 1®
Non-Polar Phase

  • For columns with 0.1-0.32 mm ID and films < 3 µm the max. temperature for isothermal operation is 340°C, the max. temperature for short isotherms in a temperature program is 360°C
  • For 0.53 mm ID columns with films < 3 µm the max. temperatures are 320°C and 340°C, resp.
  • For thick film columns with films = 3 µm the max. temperatures are 300°C and 320°C, resp.
  • Thick film columns = 3 µm film are especially recommended for solvent analysis
  • Separation of components according to boiling points
  • Similar phases: PERMABOND® SE-30, OV-1, DB-1, SE-30, HP-1, SPB-1, CP-Sil5 CB, Rtx-1, 007-1, BP1, MDN-1, AT-1, ZB-1, OV-101
  • USP G1 / G2 / G38

Optima 1 MS®
Selectivity identical to OPTIMA® 1

  • Max. temperature for isothermal operation 340°C,
  • Max. temperature for short isotherms in a temperature program 360°C
  • Phase with low bleeding
  • Similar phases: Ultra-1, DB-1MS, HP-1MS, Rtx-1MS, Equity-1, AT-1MS, VF-1MS, CP-Sil 5 CB MS
  • Ideal for GC/MS and ECD applications and general analyses at trace level
  • USP G1 / G2 / G38

Optima 1 MS Accent®
Selectivity identical to OPTIMA® 1

  • Max. temperature for isothermal operation 340°C,
  • Max. temperature for short isotherms in a temperature program 360°C
  • Lowest column bleed, nonpolar phase, ideal for ion trap and quadrupol MS detectors
  • Perfect inertness for basic compounds
  • Solvent rinsing for removal of impurities applicable
  • Similar phases: Ultra-1, DB-1 MS, HP-1 MS, Rtx-1 MS, Equity-1, AT-1 MS, VF-1 MS, CP-Sil 5 CB MS
  • Increased sensitivity due to an unmatched low background level
  • Recommended Applications: all-round phase for environmental analyses, trace analyses, EPA methods, pesticides, PCB, food and drug analyses
  • USP G1 / G2 / G38



GC Column, Optima-1, 0.1mm

Catalog #/DescriptionAdd to Cart/List Price
726024.10 - GC Column, Optima-1, 0.1mm, 0.1um, 10mAdd to Cart  313.00
726024.20 - GC Column, Optima-1, 0.1mm, 0.1um, 20mAdd to Cart  515.00
726025.20 - GC Column, Optima-1, 0.1mm, 0,4um, 20mAdd to Cart  515.00


GC Column, Optima-1, 0.2mm

Catalog #/DescriptionAdd to Cart/List Price
726832.25 - GC Column, Optima-1, 0.2mm, 0.1um, 25mAdd to Cart  559.00
726832.50 - GC Column, Optima-1, 0.2mm, 0.1um, 50mAdd to Cart  682.00
726834.12 - GC Column, Optima-1, 0.2mm, 0.2um, 12mAdd to Cart  292.00
726834.25 - GC Column, Optima-1, 0.2mm, 0.2um, 25mAdd to Cart  559.00
726834.50 - GC Column, Optima-1, 0.2mm, 0.2um, 50mAdd to Cart  930.00
726837.12 - GC Column, Optima-1, 0.2mm, 0.35um, 12mAdd to Cart  292.00
726837.25 - GC Column, Optima-1, 0.2mm, 0.35um, 25mAdd to Cart  559.00
726837.50 - GC Column, Optima-1, 0.2mm, 0.35um, 50mAdd to Cart  930.00
726839.25 - GC Column, Optima-1, 0.2mm, 0.5µm, 25mAdd to Cart  411.00
726839.50 - GC Column, Optima-1, 0.2mm, 0.5um, 50mAdd to Cart  930.00


GC Column, Optima-1, 0.25mm

Catalog #/DescriptionAdd to Cart/List Price
726038.10 - GC Column, Optima-1, 0.25mm, 0.1um, 10mAdd to Cart  260.00
726038.15 - GC Column, Optima-1, 0.25mm, 0.1um, 15mAdd to Cart  347.00
726038.25 - GC Column, Optima-1, 0.25mm, 0.1um, 25mAdd to Cart  559.00
726038.30 - GC Column, Optima-1, 0.25mm, 0.1um, 30mAdd to Cart  559.00
726038.50 - GC Column, Optima-1, 0.25mm, 0.1µm, 50mAdd to Cart  651.00
726038.60 - GC Column, Optima-1, 0.25mm, 0.1um, 60mAdd to Cart  970.00
726050.10 - GC Column, Optima-1, 0.25mm, 0.25um, 10mAdd to Cart  260.00
726050.15 - GC Column, Optima-1, 0.25mm, 0.25um, 15mAdd to Cart  347.00
726050.25 - GC Column, Optima-1, 0.25mm, 0.25um, 25mAdd to Cart  559.00
726050.30 - GC Column, Optima-1, 0.25mm, 0.25um, 30mAdd to Cart  559.00
726050.50 - GC Column, Optima-1, 0.25mm, 0.25um, 50mAdd to Cart  90.00
726050.60 - GC Column, Optima-1, 0.25mm, 0.25um, 60mAdd to Cart  970.00
726081.10 - GC Column, Optima-1, 0.25mm, 0.5um, 10mAdd to Cart  260.00
726081.15 - GC Column, Optima-1, 0.25mm, 0.5µm, 15mAdd to Cart  277.00
726081.25 - GC Column, Optima-1, 0.25mm, 0.5um, 25mAdd to Cart  559.00
726081.30 - GC Column, Optima-1, 0.25mm, 0.5um, 30mAdd to Cart  559.00
726081.50 - GC Column, Optima-1, 0.25mm, 0.5um, 50mAdd to Cart  930.00
726081.60 - GC Column, Optima-1, 0.25mm, 0.5um, 60mAdd to Cart  970.00
726802.25 - GC Column, Optima-1, 0.25mm, 1um, 25mAdd to Cart  559.00
726802.30 - GC Column, Optima-1, 0.25mm, 1um, 30mAdd to Cart  559.00
726802.50 - GC Column, Optima-1, 0.25mm, 1um, 50mAdd to Cart  930.00
726802.60 - GC Column, Optima-1, 0.25mm, 1um, 60mAdd to Cart  970.00


GC Column, Optima-1, 0.32mm

Catalog #/DescriptionAdd to Cart/List Price
726301.10 - GC Column, Optima-1, 0.32mm, 0.1um, 10mAdd to Cart  275.00
726301.15 - GC Column, Optima-1, 0.32mm, 0.1µm, 15mAdd to Cart  285.00
726301.25 - GC Column, Optima-1, 0.32mm, 0.1um, 25mAdd to Cart  599.00
726301.30 - GC Column, Optima-1, 0.32mm, 0.1um, 30mAdd to Cart  599.00
726301.50 - GC Column, Optima-1, 0.32mm, 0.1um, 50mAdd to Cart  1005.00
726301.60 - GC Column, Optima-1, 0.32mm, 0.1um, 60mAdd to Cart  1070.00
726302.10 - GC Column, Optima-1, 0.32mm, 0.25um, 10mAdd to Cart  275.00
726302.15 - GC Column, Optima-1, 0.32mm, 0.25um, 15mAdd to Cart  356.00
726302.25 - GC Column, Optima-1, 0.32mm, 0.25um, 25mAdd to Cart  599.00
726302.30 - GC Column, Optima-1, 0.32mm, 0.25um, 30mAdd to Cart  599.00
726302.50 - GC Column, Optima-1, 0.32mm, 0.25um, 50mAdd to Cart  1005.00
726302.60 - GC Column, Optima-1, 0.32mm, 0.25um, 60mAdd to Cart  1070.00
726821.25 - GC Column, Optima-1, 0.32mm, 0.35um, 25mAdd to Cart  599.00
726821.30 - GC Column, Optima-1, 0.32mm, 0.35um, 30mAdd to Cart  599.00
726821.50 - GC Column, Optima-1, 0.32mm, 0.35um, 50mAdd to Cart  1005.00
726821.60 - GC Column, Optima-1, 0.32mm, 0.35um, 60mAdd to Cart  1070.00
726304.10 - GC Column, Optima-1, 0.32mm, 0.5um, 10mAdd to Cart  275.00
726304.15 - GC Column, Optima-1, 0.32mm, 0.5µm, 15mAdd to Cart  285.00
726304.25 - GC Column, Optima-1, 0.32mm, 0.5um, 25mAdd to Cart  599.00
726304.30 - GC Column, Optima-1, 0.32mm, 0.5um, 30mAdd to Cart  599.00
726304.50 - GC Column, Optima-1, 0.32mm, 0.5um, 50mAdd to Cart  1005.00
726304.60 - GC Column, Optima-1, 0.32mm, 0.5um, 60mAdd to Cart  1070.00
726323.10 - GC Column, Optima-1, 0.32mm, 1um, 10mAdd to Cart  275.00
726323.25 - GC Column, Optima-1, 0.32mm, 1um, 25mAdd to Cart  599.00
726323.30 - GC Column, Optima-1, 0.32mm, 1um, 30mAdd to Cart  599.00
726323.50 - GC Column, Optima-1, 0.32mm, 1um, 50mAdd to Cart  1005.00
726323.60 - GC Column, Optima-1, 0.32mm, 1um, 60mAdd to Cart  1070.00
726805.25 - GC Column, Optima-1, 0.32mm, 3um, 25mAdd to Cart  599.00
726805.30 - GC Column, Optima-1, 0.32mm, 3um, 30mAdd to Cart  599.00
726805.50 - GC Column, Optima-1, 0.32mm, 3um, 50mAdd to Cart  1005.00
726805.60 - GC Column, Optima-1, 0.32mm, 3um, 60mAdd to Cart  1070.00
726931.25 - GC Column, Optima-1, 0.32mm, 5um, 25mAdd to Cart  599.00
726931.30 - GC Column, Optima-1, 0.32mm, 5um, 30mAdd to Cart  599.00
726931.50 - GC Column, Optima-1, 0.32mm, 5um, 50mAdd to Cart  1005.00


GC Column, Optima-1, 0.53mm

Catalog #/DescriptionAdd to Cart/List Price
726519.10 - GC Column, Optima-1, 0.53mm, 0.5µm, 10mAdd to Cart  255.00
726519.25 - GC Column, Optima-1, 0.53mm, 0.5um, 25mAdd to Cart  694.00
726519.30 - GC Column, Optima-1, 0.53mm, 0.5um, 30mAdd to Cart  694.00
726529.10 - GC Column, Optima-1, 0.53mm, 1um, 10mAdd to Cart  322.00
726529.15 - GC Column, Optima-1, 0.53mm, 1um, 15mAdd to Cart  389.00
726529.25 - GC Column, Optima-1, 0.53mm, 1um, 25mAdd to Cart  694.00
726529.30 - GC Column, Optima-1, 0.53mm, 1um, 30mAdd to Cart  694.00
726521.10 - GC Column, Optima-1, 0.53mm, 2um, 10mAdd to Cart  322.00
726521.15 - GC Column, Optima-1, 0.53mm, 2µm, 15mAdd to Cart  308.00
726521.25 - GC Column, Optima-1, 0.53mm, 2um, 25mAdd to Cart  694.00
726521.30 - GC Column, Optima-1, 0.53mm, 2um, 30mAdd to Cart  694.00
726521.50 - GC Column, Optima-1, 0.53mm, 2um, 50mAdd to Cart  1075.00
726926.10 - GC Column, Optima-1, 0.53mm, 5um, 10mAdd to Cart  322.00
726926.15 - GC Column, Optima-1, 0.53mm, 5µm, 15mAdd to Cart  336.00
726926.25 - GC Column, Optima-1, 0.53mm, 5um, 25mAdd to Cart  694.00
726926.30 - GC Column, Optima-1, 0.53mm, 5um, 30mAdd to Cart  694.00
726926.50 - GC Column, Optima-1, 0.53mm, 5um, 50mAdd to Cart  1075.00


GC Column, Optima-1 MS

Catalog #/DescriptionAdd to Cart/List Price
726201.25 - GC Column, Optima-1 MS, 0.20mm, 0.20um, 25mAdd to Cart  643.00
726201.50 - GC Column, Optima-1 MS, 0.20mm, 0.20um, 50mAdd to Cart  1060.00
726203.12 - GC Column, Optima-1 MS, 0.2mm, 0.35um, 12 mAdd to Cart  335.00
726205.15 - GC Column, Optima-1 MS, 0.25mm, 0.25um, 15mAdd to Cart  400.00
726205.30 - GC Column, Optima-1 MS, 0.25mm, 0.25um, 30mAdd to Cart  643.00
726205.60 - GC Column, Optima-1 MS, 0.25mm, 0.25um, 60mAdd to Cart  1115.00
726202.30 - GC Column, Optima-1 MS, 0.32mm, 0.25um, 30mAdd to Cart  687.00
726202.60 - GC Column, Optima-1 MS, 0.32mm, 0.25um, 60mAdd to Cart  1235.00


GC Column, Optima-1 MS-A

Catalog #/DescriptionAdd to Cart/List Price
725801.25 - GC Column, OPTIMA-1 MS-A, 0.20mm, 0.20um, 25mAdd to Cart  684.00
725805.15 - GC Column, OPTIMA-1 MS-A, 0.25mm, 0.25um, 15mAdd to Cart  462.00
725805.30 - GC Column, OPTIMA-1 MS-A, 0.25mm, 0.25um, 30mAdd to Cart  684.00
725805.60 - GC Column, OPTIMA-1 MS-A, 0.25mm, 0.25um, 60mAdd to Cart  1235.00
725806.30 - GC Column, OPTIMA-1 MS-A, 0.25mm, 0.50um, 30mAdd to Cart  684.00
725806.60 - GC Column, OPTIMA-1 MS-A, 0.25mm, 0.50um, 60mAdd to Cart  1235.00
Application #Application TitleLink
200072Analysis of Unleaded Gasoline
200190Analysis of Methylene chloride / Pentane
200460Analysis of Polycyclic Aromatic Hydrocarbons (PAH)
200470Separation of 16 PAHs according to EPA on OPTIMA 1
200490Analysis of Polycyclic Aromatic Hydrocarbons (PAH) acc. to EPA
200500Analysis of Polycyclic Aromatic Hydrocarbons (PAH) acc. to EPA
200540ECD analysis of 48 halogenated pesticides and PCBs on a 50 m OPTIMA® 1 column
200620Analysis of pesticides and PCB
200630Analysis of pesticides and PCB
200680Analysis of pesticides and PCB in mothers milk (Southern Bavaria)
200750Analysis of Herbicides (Silician soil sample)
200760Very fast separation of phosphorus or nitrogen containing compounds on an OPTIMA 1 column
200780Ultrafast analysis of 32 herbicides on an OPTIMA 1 column
200810Analysis of Triazine Herbicides
200910Analysis of Fungicides
200970Separation of 34 insecticides on an OPTIMA 1 column
200990Analysis of pesticides acc. to EPA 507
201192Analysis of plasticisers
201210Analysis of plasticisers acc. to EPA method 606
201250Analysis of 2,4-Dinitrophenylhydrazones
201260Analysis of caffeine and morphine on an OPTIMA 1
201280Analysis of amphetamines
201300Analysis of Drugs on OPTIMA® 1
201390Separation of 30 Solvents on OPTIMA® 1 column
210010Analysis of Heroin
210020Analysis of cocaine
210440Analysis of D,L-alpha-tocopherol acetate (vitamin E acetate)
210600Analysis of hydrocarbons acc. to ISO 9377-4
211270OPTIMA 1 column test
212040Determination of Benzimidazole Anthelmintics in Meat Samples
212140Qualitative determination of Organo tin compounds
212170Phenol test mixture
212580Determination of picogram levels of midazolam and metabolites in human plasma
250230FAMEs on an apolar column (OPTIMA® 1)
250340Separation of Secondary and Tertiary Amines
