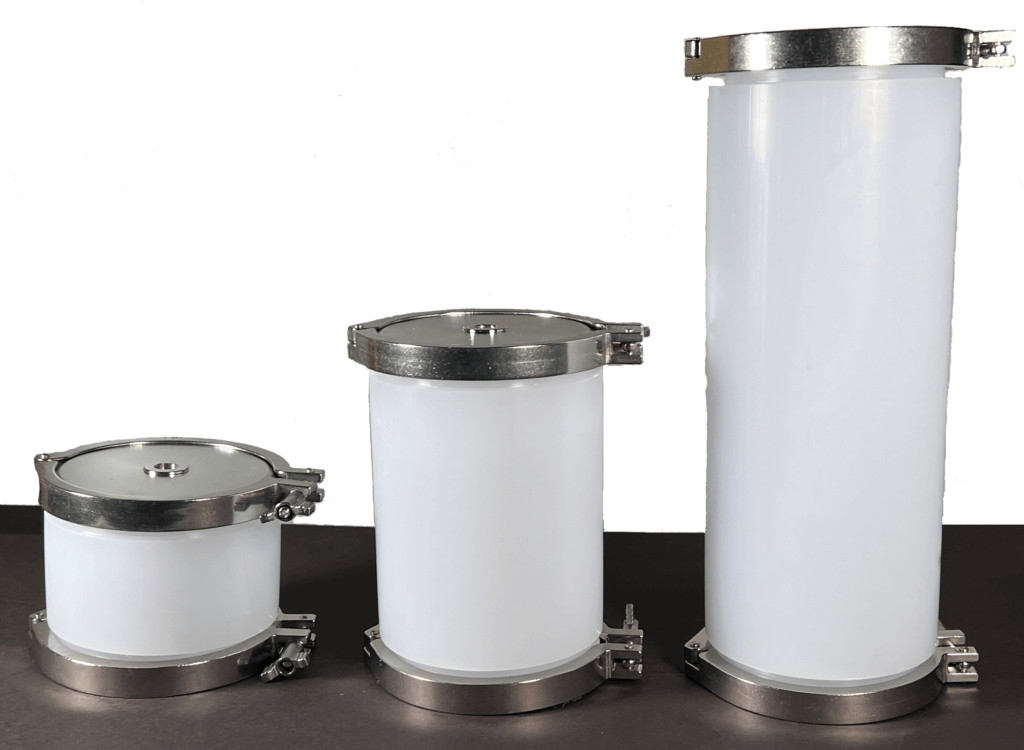

Large-Sized Empty Solid Load Cartridge
Large-sized empty solid load cartridges offer convenience of manual assembly to the users and meet the needs of users for loading higher sample quantity. To connect the solid load cartridge with most commonly used high flow rate flash chromatography systems available in the market, there are several adaptors for tubings with various outer diameters (OD), including 1/4-inch, 3/16-inch and 1/8-inch.
- Innovative column design convenient for manual assembly
- Available in 5 cartridge sizes of 800g, 1600g, 3000g, 5000g, and 7000g
- Various adaptors for different OD tubings make it compatible with any flash system
- Reinforced cartridge body with maximum operating pressure up to 100 psi (6.9 bar)
- The end cover is vertically sealed to avoid the risk of leakage
- Easy-to-remove end cover by tightening or loosening butterfly bolts
- Supports multiple use, easy to replace consumables – plastic column tube
Reusable Parts
The reusable parts of the empty solid load cartridge consist of the stainless-steel end cap, retaining ring, and butterfly bolts, so it can be used for a long time. This product is an economical and suitable choice for users.
Disposable Parts
The disposable parts for empty solid load cartridge consist of the column tube, the frit and the sealing ring. These parts will be contaminated after one or several uses, at which time users can replace the parts according to actual needs. The optimized design of the product provides convenience and cost savings for users.

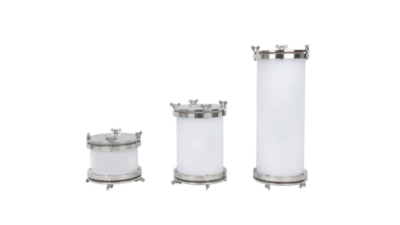

Large-sized empty solid load cartridges offer convenience of manual assembly to the users and meet the needs of users for loading higher sample quantity. To connect the solid load cartridge with most commonly used high flow rate flash chromatography systems available in the market, there are several adaptors for tubings with various outer diameters (OD), including 1/4-inch, 3/16-inch and 1/8-inch.
- Innovative column design convenient for manual assembly
- Available in 3 cartridge sizes of 800g, 1600g and 3000g
- Support user-customized length of column tube
- Various adaptors for different OD tubings make it compatible with any flash system
- Reinforced cartridge body with maximum operating pressure up to 100 psi (6.9 bar)
- Support multiple use, easy to replace consumables – plastic column tube
The reusable part of empty solid load cartridge is mainly composed of the stainless steel cap and the stainless steel hoop, so it can be used for a long time. This product is an economical and suitable choice for users.
The disposable parts for empty solid load cartridge mainly include the column tube, the frit and the sealing ring, and these parts will be contaminated after one or several uses, when users can replace these parts according to actual needs. The optimized design of the product provides convenience and cost savings for users.
Products
Large-Sized Empty Flash Cartridges
| Catalog No. | Description | Price (USD) |
|---|---|---|
| FCSTLL-Group-800A | Includes: Empty Flash Cartridge - 800A, Stainless Steel Assembly, Frits, O-rings, Frit Insertion Tool, Small Adaptor, Medium Adaptor, and Large Adaptor | BUY NOW $1,309.13 |
| FCSTLL-Group-1600A | Includes: Empty Flash Cartridge - 1600A, Stainless Steel Assembly, Frits, O-rings, Frit Insertion Tool, Small Adaptor, Medium Adaptor, and Large Adaptor | BUY NOW $1,368.20 |
| FCSTLL-Group-3000A | Includes: Empty Flash Cartridge - 3000A, Stainless Steel Assembly, Frits, O-rings, Frit Insertion Tool, Small Adaptor, Medium Adaptor, and Large Adaptor | BUY NOW $1,556.07 |
| FCSTLL-Group-800B | Includes: Empty Flash Cartridge - 800B, Stainless Steel Butterfly Assembly, Frits, O-rings, Frit Insertion Tool, Small Adaptor, Medium Adaptor, and Large Adaptor | BUY NOW $1,439.04 |
| FCSTLL-Group-1600B | Includes: Empty Flash Cartridge - 1600B, Stainless Steel Butterfly Assembly, Frits, O-rings, Frit Insertion Tool, Small Adaptor, Medium Adaptor, and Large Adaptor | BUY NOW $1,496.34 |
| FCSTLL-Group-3000B | Includes: Empty Flash Cartridge - 3000B, Stainless Steel Butterfly Assembly, Frits, O-rings, Frit Insertion Tool, Small Adaptor, Medium Adaptor, and Large Adaptor | BUY NOW $1,588.97 |
| FCSTLL-Group-5000B | Includes: Empty Flash Cartridge - 5000B, Stainless Steel Butterfly Assembly, Frits, O-rings, Frit Insertion Tool, Small Adaptor, Medium Adaptor, and Large Adaptor | BUY NOW $1,915.58 |
| FCSTLL-Group-7000B | Includes: Empty Flash Cartridge - 7000B, Stainless Steel Butterfly Assembly, Frits, O-rings, Frit Insertion Tool, Small Adaptor, Medium Adaptor, and Large Adaptor | BUY NOW $2,054.24 |
Replacement Parts
| Catalog No. | Description | Price (USD) |
|---|---|---|
| FCSTLL-800A-1 | Empty Flash Cartridge – 800A, includes: plastic column, SS caps, SS clamps, o-rings, and frits, 1395ml, 127mm x 140mm, 100psi, 1/pk | BUY NOW $1,007.80 |
| FCSTLL-1600A-1 | Empty Flash Cartridge - 1600A, includes: plastic column, SS caps, SS clamps, o-rings, and frits, 2760ml, 127mm x 250mm, 100psi, 1/pk | BUY NOW $1,066.01 |
| FCSTLL-3000A-1 | Empty Flash Cartridge - 3000A, includes: plastic column, SS caps, SS clamps, o-rings, and frits, 5165ml, 127mm x 440mm, 100 psi, 1/pk | BUY NOW $1,302.49 |
| FCSTLL-800B-1 | Empty Flash Cartridge – 800B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 1395ml, 127mm x 140mm, 100psi, 1/pk | BUY NOW $1,146.05 |
| FCSTLL-1600B-1 | Empty Flash Cartridge - 1600B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 2760ml, 127 x 250mm, 100psi, 1/pk | BUY NOW $1,200.62 |
| FCSTLL-3000B-1 | Empty Flash Cartridge - 3000B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 5165ml, 127 x 440mm, 100psi, 1/pk | BUY NOW $1,302.49 |
| FCSTLL-5000B-1 | Empty Flash Cartridge - 5000B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 8610ml, 127 x 692mm, 100psi, 1/pk | BUY NOW $2,019.23 |
| FCSTLL-7000B-1 | Empty Flash Cartridge - 7000B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 12510ml, 127 x 1000mm, 100psi, 1/pk | BUY NOW $2,128.38 |
| FCSTLL-800Arepcol | Empty Flash Cartridge - 800A replacement column housing for 800g | BUY NOW $231.39 |
| FCSTLL-1600Arepcol | Empty Flash Cartridge - 1600A replacement column housing for 1600g | BUY NOW $298.01 |
| FCSTLL-3000Arepcol | Empty Flash Cartridge - 3000A replacement column housing for 3000g | BUY NOW $473.31 |
| FCSTLL-800Brepcol | Empty Flash Cartridge - 800B replacement column housing for 800g | BUY NOW $243.48 |
| FCSTLL-1600Brepcol | Empty Flash Cartridge - 1600B replacement column housing for 1600g | BUY NOW $306.77 |
| FCSTLL-3000Brepcol | Empty Flash Cartridge - 3000B replacement column housing for 3000g | BUY NOW $409.04 |
| FCSTLL-5000Brepcol | Empty Flash Cartridge - 5000B replacement column housing for 5000g | BUY NOW $726.51 |
| FCSTLL-7000Brepcol | Empty Flash Cartridge - 7000B replacement column housing for 7000g | BUY NOW $876.49 |
| FCSTLL-Frts-LargeA-Top | Top Frit A for 800g, 1600g, and 3000g Flash Cartridge, 1 ea. | BUY NOW $25.13 |
| FCSTLL-Frts-LargeA-Bot | Bottom Frit A for 800g, 1600g, and 3000g Flash Cartridge, 1 ea. | BUY NOW $25.13 |
| FCSTLL-Frts-LargeB-Original | Frit B for 800g, 1600g, 3000g, 5000g, and 7000g, 1 ea. | BUY NOW $86.95 |
| FCSTLL-ORS-LargeA | O-ring A for 800g, 1600g, and 3000g Flash Cartridge, Silicone, 1ea. | BUY NOW $23.15 |
| FCSTLL-OR-LargeB | O-ring B for 800g, 1600g, 3000g, 5000g, and 7000g Flash Cartridge, 1 ea. | BUY NOW $23.15 |
| FCSTLL-Frts-LargeB2025 | 20-25um Frit B for 800g, 1600g, 3000g, 5000g, and 7000g, fits top or bottom, 1 ea. | BUY NOW $25.13 |
| FCSTLL-Frts-LargeB3040 | 30-40um Frit B for 800g, 1600g, 3000g, 5000g, and 7000g, fits top or bottom, 1 ea. | BUY NOW $25.13 |
| FCSTLL-Kit-LargeA | Stainless Steel Assembly for Empty Flash Cartridges A (800g - 3kg sizes), includes stainless steel cap, hoop, and sealing ring, 1/pk | BUY NOW $688.30 |
| FCSTLL-Kit-LargeB | Stainless Steel Butterfly Assembly for Empty Flash Cartridges B (800g - 7000g) includes stainless steel cap, hoop, and tightening screws, 1/pk | BUY NOW $789.65 |
Accessories
| Catalog No. | Description | Price (USD) |
|---|---|---|
| FCSTLL-SmAdaptors | Small Adaptors (top and bottom) for 800g, 1600g, and 3000g Empty Flash Cartridges, fits 1/8 in. OD tubing, 1pk | BUY NOW $116.85 |
| FCSTLL-MedAdaptors | Medium Adaptors (top and bottom) for 800g, 1600g, and 3000g Empty Flash Cartridges, fits 3/16 in. OD tubing, 1pk | BUY NOW $116.85 |
| FCSTLL-LgAdaptors | Large Adaptors (top and bottom) for 800g, 1600g, and 3000g Empty Flash Cartridges, fits 1/4 in. OD tubing, 1pk | BUY NOW $116.85 |
| FCSTLL-FIT-007 | Frit Insertion Tool for 800g, 1600g, or 3000g Empty Flash Cartridge | BUY NOW $294.22 |
Precision Matters.
So Does Support.
If you need guidance, clarification, or product expertise, your Account Manager is ready to assist.
Specifications
| Catalog # | Description | Volume (mL) | Cartridge Length (mm) | Cartridge ID (mm) | Max. Pressure (psi/bar) |
|---|---|---|---|---|---|
|
FCSTLL-800B |
Empty Flash Cartridge – 800B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 1395ml, 127mm x 140mm, 100psi, 1/pk |
1395 | 140 | 127 | 100/6.9 |
|
FCSTLL-1600B |
Empty Flash Cartridge – 1600B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 2760ml, 127 x 250mm, 100psi, 1/pk |
2760 | 250 | 127 | 100/6.9 |
|
FCSTLL-3000B |
Empty Flash Cartridge – 3000B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 5165ml, 127 x 440mm, 100psi, 1/pk |
5165 | 440 | 127 | 100/6.9 |
|
FCSTLL-5000B |
Empty Flash Cartridge – 5000B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 8610ml, 127 x 692mm, 100psi, 1/pk |
8610 | 692 | 127 | 100/6.9 |
|
FCSTLL-7000B |
Empty Flash Cartridge – 7000B, includes: plastic column, SS butterfly assembly, o-rings, and frits, 12510ml, 127 x 1000mm, 100psi, 1/pk |
12510 | 1000 | 127 | 100/6.9 |
| Capacity | Description | Volume (mL) | Cartridge Length (mm) | Cartridge ID (mm) | Max. Pressure (psi/bar) |
|---|---|---|---|---|---|
| 800g | Fully assembled, with plastic column tube and stainless steel assembly | 1395 | 140 | 127 | 100/6.9 |
| 1600g | Fully assembled, with plastic column tube and stainless steel assembly | 2760 | 250 | 127 | 100/6.9 |
| 3000g | Fully assembled, with plastic column tube and stainless steel assembly | 5165 | 440 | 127 | 100/6.9 |
User Guide
Step 1

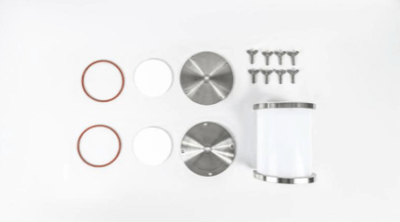

Check product components, including column tubes, two end caps, two retaining rings, two sealing rings, eight butterfly bolts and two filters.
Step 2

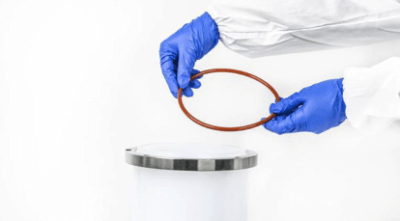

Place the column tube on the lab bench, and place the sealing ring in the groove of the column tube opening.
Step 3

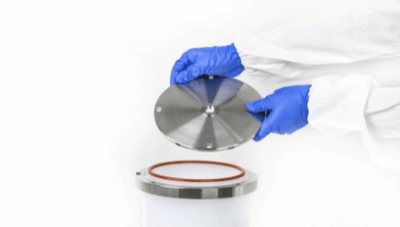

Place the cap on the sealing ring, and the sealing ring fits into the groove on the lower part of the cap.
Step 4
Insert the butterfly bolt.
Step 5

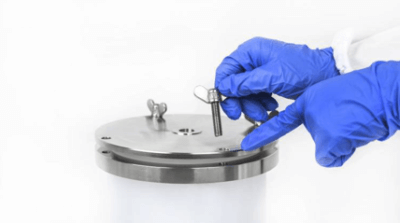

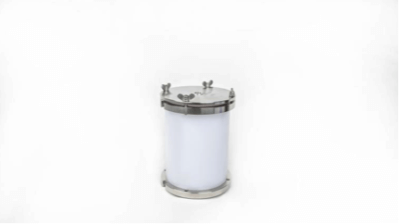

Manually tighten the four butterfly bolts to secure the end cover.
Step 6

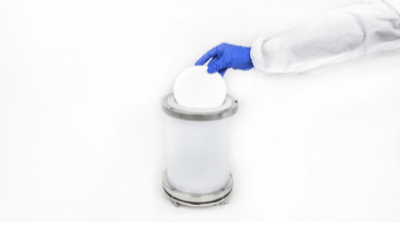

Rotate the column body so that the other opening end is up. Place the bottom frit into the lower part of the column body, and use the plug tool to flatten the bottom frit. At this time, the bottom frit is in contact with the cap.
Step 7

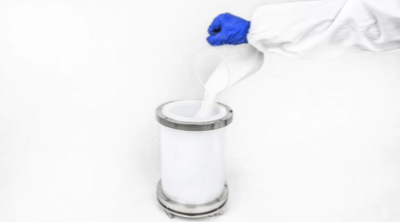

Fill suitable chromatographic media or solid samples into the tube according to user needs.
Step 8

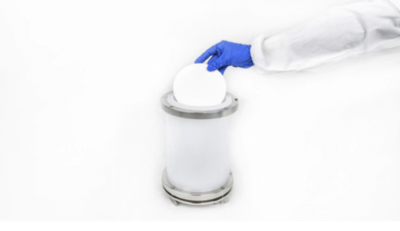

Place the top frit on the filled media bed and align the frit horizontally.
Step 9

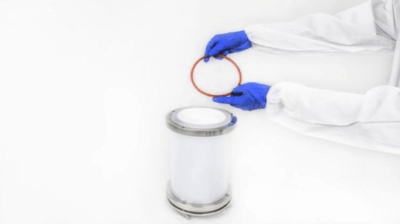

Place the other sealing ring in the groove of the column body opening.
Step 10

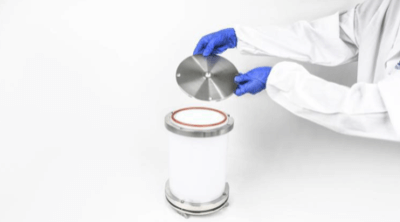

Place the other cap on the sealing ring, and the sealing ring fits into the groove on the lower part of the cap.
Step 11

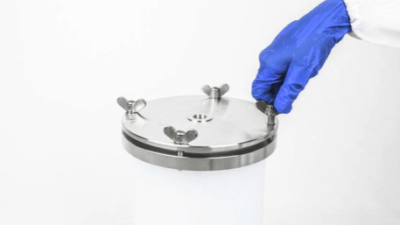

Insert the butterfly bolt to secure the end cover.
Step 12

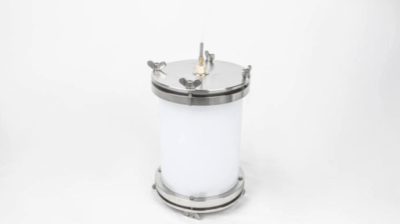

Connect the adaptors of the tubings to the inlet and outlet of the cartridge. Users can choose the appropriate adaptor of 1/8-inch, 3/16-inch or 1/4-inch OD tubing according to their needs.
Step 1
Check the product components, including a column tube, two caps, two hoops, two sealing rings and top and bottom frits.
Step 2
Place the column tube on the lab bench, and place the sealing ring in the groove of the column tube opening.
Step 3
Place the cap on the sealing ring, and the sealing ring fits into the groove on the lower part of the cap.
Step 4
Use the hoop to hold the outer rim of the cap and the outer rim of the column tube opening.
Step 5
The locking component on the hoop includes a screw rod and a locking nut, and the locking nut is threaded on the screw rod. Pass the screw rod through the locking opening, and screw the locking nut to make the column tube and the cap move toward each other to realize the locking connection. It is recommended to use a wrench tool to tighten the locking nut.
Step 6
Rotate the column body so that the other opening end is up. Place the bottom frit into the lower part of the column body, and use the plug tool to flatten the bottom frit. At this time, the bottom frit is in contact with the cap.
Step 7
Fill suitable chromatographic media or solid samples into the tube according to user needs.
Step 8
Place the top frit on the filled media bed and align the frit horizontally.
Step 9
Place the other sealing ring in the groove of the column body opening.
Step 10
Place the other cap on the sealing ring, and the sealing ring fits into the groove on the lower part of the cap.
Step 11
Use the other hoop to hold the outer rim of the cap and the outer rim of the column body opening, and lock the column body and the cap by screwing the locking nut. It is recommended to use a wrench tool to tighten the locking nut.
Step 12
Connect the adaptors of the tubings to the inlet and outlet of the cartridge. Users can choose the appropriate adaptor of 1/8-inch, 3/16-inch or 1/4-inch OD tubing according to their needs.
